MQTT

MQTT is a lightweight queueing protocol commonly used in the IoT industry. The Arroyo MQTT connector can use MQTT brokers as sources and sinks using configurable reliability.

Configuring the Connection

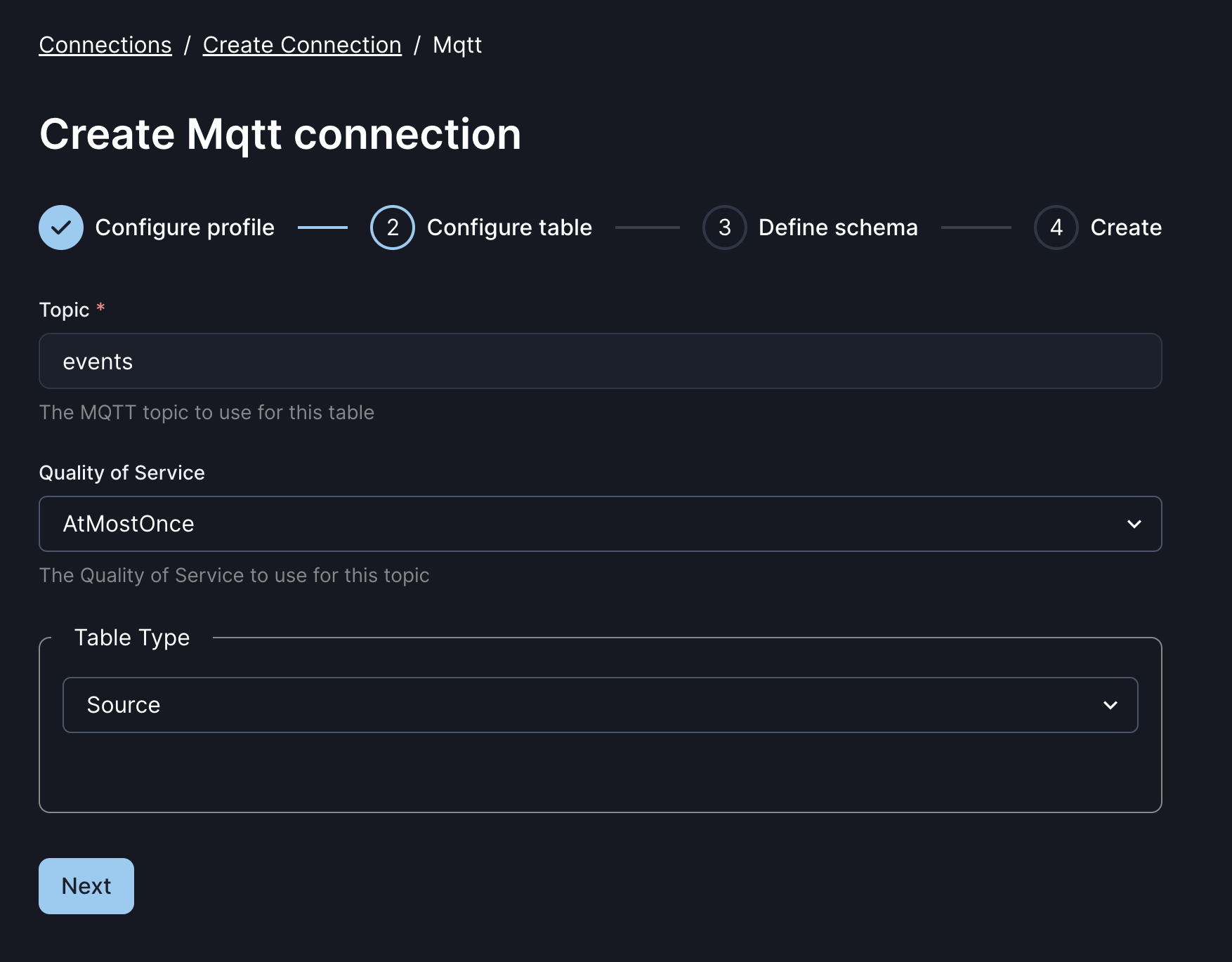

MQTT connections can be created with the Web UI or SQL DDL.

An MQTT connection has several required and optional fields:

Field	Description	Required	Example
url	The URL of the MQTT broker	Yes	tcp://localhost:1883
username	Username for the MQTT broker	For password auth	bob
password	Password for the MQTT broker	for password auth	hunter2
tls.ca	Path to the CA file	For TLS auth	/mount/certs/ca.pem
tls.cert	Path to the client cert file auth	For TLS auth	/mount/certs/client.pem
tls.key	Path to the client key file	For TLS auth	/mount/certs/client.key
topic	The MQTT topic to read or write from	Yes	events
qos	One of ‘AtMostOnce’, ‘AtleastOnce’, or ‘ExactlyOnce’	No	AtMostOnce
type	Either ‘source’ or ‘sink’	Yes	source
sink.retain	Whether to retain messages published to this topic	No	false
max_packet_size	Maximum MQTT packet size in bytes	No	10240

Connection Profiles

Arroyo connectors can split their configuration into two parts: the profile config, which covers the common details of how to connect and authenticate against a cluster, and the table config which is specific to a particular instance of the connector.

For MQTT, the profile represents a particular MQTT broker or cluster, while the table represents a particular topic.

MQTT profiles can be defined via the Web UI and shared across multiple tables. They can be used in SQL DDL by setting the connection_profile option in the WITH clause.

See the connection profile docs for more details.

Source metadata

The MQTT connector supports accessing the following metadata fields:

• topic TEXT - the MQTT topic the message was consumed from

See the source metadata docs for more on how to use metadata fields.

Examples

MQTT Source

create table mqtt_source (
    id TEXT,
    lat FLOAT,
    lng FLOAT,
    type INT,
    topic TEXT METADATA FROM 'topic'
) with (
    connector = 'mqtt',
    url = 'tcp://localhost:1833',
    type = 'source',
    format = 'json',
    topic = 'events'
);

MQTT Sink

create table mqtt_sink with (
    connector = 'mqtt',
    url = 'tcp://localhost:1833',
    type = 'sink',
    format = 'json',
    topic = 'results',
    'sink.retain' = true
);
