NATS is a messaging and queueing system designed for simplicity and performance. Arroyo includes sources and sinks for Core NATS and NATS Jetstream, which layers on persistence and delivery guarantees.

​
Configuring the Connection

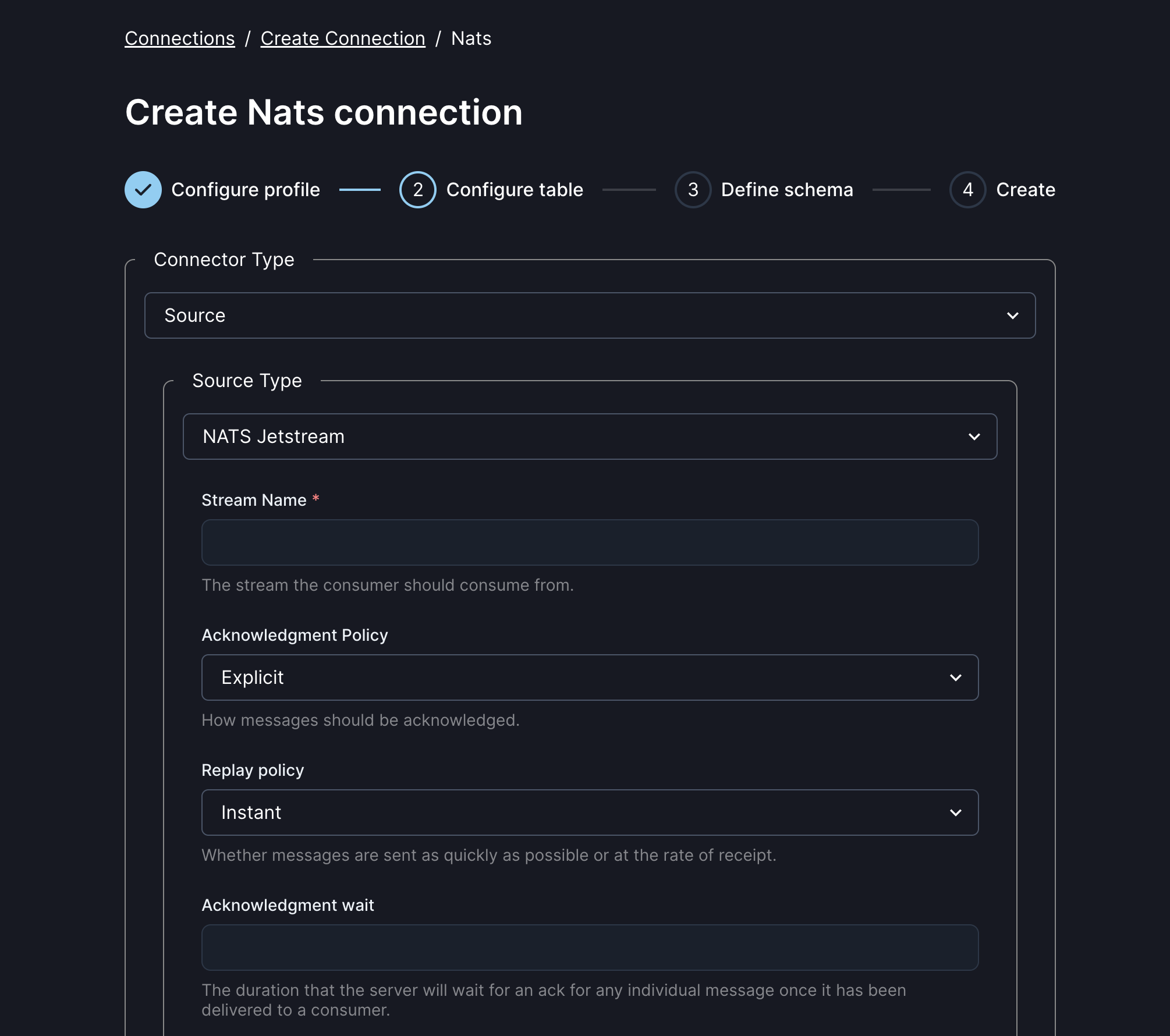

NATS connections can be created with the Web UI or SQL DDL. Creating a NATS connection An NATS connection has several required and optional fields:
FieldDescriptionRequiredExample
serversComma-separated list of NATS serversYesnats-1:4222,nats-2:4222
auth.typeOne of ‘none’, ‘credentials’, or jqtNocredentials
auth.usernameUsername for authFor auth.type = ‘credentials’bob
auth.passwordPassword for authFor auth.type = ‘credentials’hunter2
auth.jwtJWT token string used for JWT-based authentication with NATSIf auth.type = 'jwt'eyJhbGciOiJFZERTQSJ9...
auth.nkey_seedNKEY seed string (private key) used to sign authentication challenges when using JWT-based authenticationIf auth.type = 'jwt'SUAFK5ZQJXPQ...
typeEither ‘source’ or ‘sink’Yessource
streamThe NATS stream to read from, for jetstreamOne of stream or subjectevents-arroyo
subjectThe Core NATS subject to read or write fromOne of stream or subjectevents
consumer.ack_policyOne of ‘Explicit’, ‘None’, or ‘All’NoExplicit
consumer.replay_policyOne of ‘Original’ or ‘Instant’NoInstant
consumer.ack_waitDuration in seconds that the server will wait for an ack for any individual message once it has been delivered to a consumerNo300
consumer.descriptionDescription of the consumerNoarroyo-consumer
consumer.filter_subjectsComma-separated list of subjects the consumer should filter onNoevents1,events2
consumer.num_replicasNumber of replicas for the consumer’s stateNo3
consumer.inactive_thresholdDuration in seconds before inactive consumers will be cleaned upNo600
consumer.rate_limitMaximum number of messages per second that will be delivered to consumer (-1 for no limit)No1000
consumer.max_ack_pendingMaximum number of messages without an acknowledgement that may be in flight before sending is paused (-1 for no limit)No1000
consumer.max_deliverMaximum number of times a specific message delivery will be attempted (-1 for no limit)No20
consumer.max_waitingMaximum number of messages that can be waiting to be delivered (-1 for no limit)No10000
consumer.max_batchMaximum number of messages that may be delivered in a single batchNo1000
consumer.max_bytesMaximum number of bytes that will be delivered in a single batchNo104857600
consumer.max_expiresMaximum number of messages that can be delivered to the consumer before they are considered expiredNo30000
See the NATS documentation for more explanation of these configurations.

​
Connection Profiles

Arroyo connectors can split their configuration into two parts: the profile config, which covers the common details of how to connect and authenticate against a cluster, and the table config which is specific to a particular instance of the connector. For NATS, the profile represents a particular NATS server or cluster, while the table represents a particular subject or stream. NATS profiles can be defined via the Web UI and shared across multiple tables. They can be used in SQL DDL by setting the connection_profile option in the WITH clause. See the connection profile docs for more details.

​
Examples

​
NATS Source

CREATE TABLE logs (
    id BIGINT NOT NULL,
    time TIMESTAMP NOT NULL,
    host TEXT NOT NULL,
    level TEXT NOT NULL,
    message TEXT NOT NULL
) with (
    type = 'source',
    connector = 'nats',
    servers = 'localhost:4222',
    subject = 'logs',
    'auth.type' = 'credentials',
    'auth.username' = '{{ NATS_USER }}',
    'auth.password' = '{{ NATS_PASSWORD }}',
    format = 'json'
);

​
NATS Sink

CREATE TABLE results (
    count BIGINT NOT NULL,
    time TIMESTAMP NOT NULL
) with (
    type = 'sink',
    connector = 'nats',
    servers = 'localhost:4222',
    subject = 'results',
    format = 'json'
);
